1X2 mini PLC optical fiber splitter

Description Review
Description

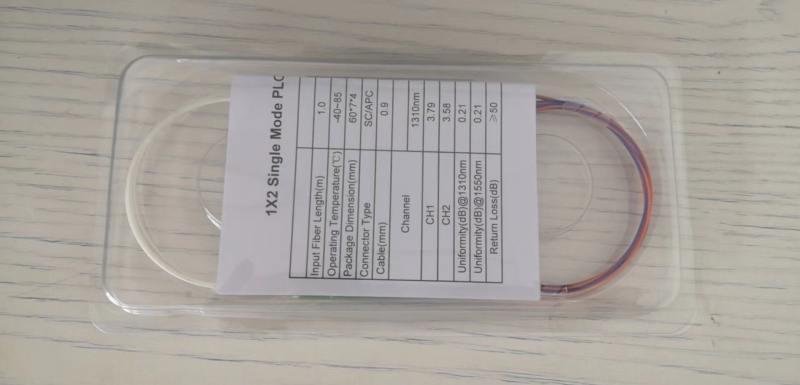

1X2 mini PLC optical fiber splitter


Description:

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. PioneerGoods provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Features:

1) Low Insertion loss

2) Low PDL

3) Compact Design

4) Good channel-to-channel uniformity

5) Wide Operating Wavelength:From 1260nm to 1650nm

6) Wide Operating Temperature: From -40°C to 85°C

7) High Reliability and Stability

Specification:

Parameters 1x2 2x2 1x4 2x4 1x8 2x8 1x16 2x16 1x32
Operating Wavelength(nm) 1260一1650
Insertion Loss(dB) 3.8 4.0 7.1 7.6 10.2 11.0 13.5 14.4 16.5
(P/s Grade) 4.0 4.2 7.3 7.8 10.5 11.2 13.7 14.6 16.9
Loss Uniformity(dB) 0.4 0.6 0.6 1.0 0.8 1.2 1.2 1.5 1.5
Return Loss (dB)(P/S Grade  55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.2 0.2 0.3 0.25 0.3 0.3
Directivity(dB) 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.4 0.3 0.5 0.5 0.5 0.5
Temperature Stability   (-40-8℃)(dB) 0.4 0.4 0.4 04 0.4 0.4 0.5 0.5 05
Operating Temperature(℃) -40~85
Storage Temperature(℃) -40~85
Module Dimension 60*7*4mm 60*12*4mm 80*20*6mm
