Instrument characteristics:
1.9-in-1 functions
2. The 4.3-inch full-view capacitive touch-screen supports multi-touch
3. Cover plate type tempered glass panel, don't worry about screen scratch
4. Support horizontal version, vertical version, perfect fusion of the two habits of user
Operations
5.Support charging treasure charging, do not worry about the battery is not enough.
6. In line with the international standards of test data with perfect simulation software, sothat your report is more simple

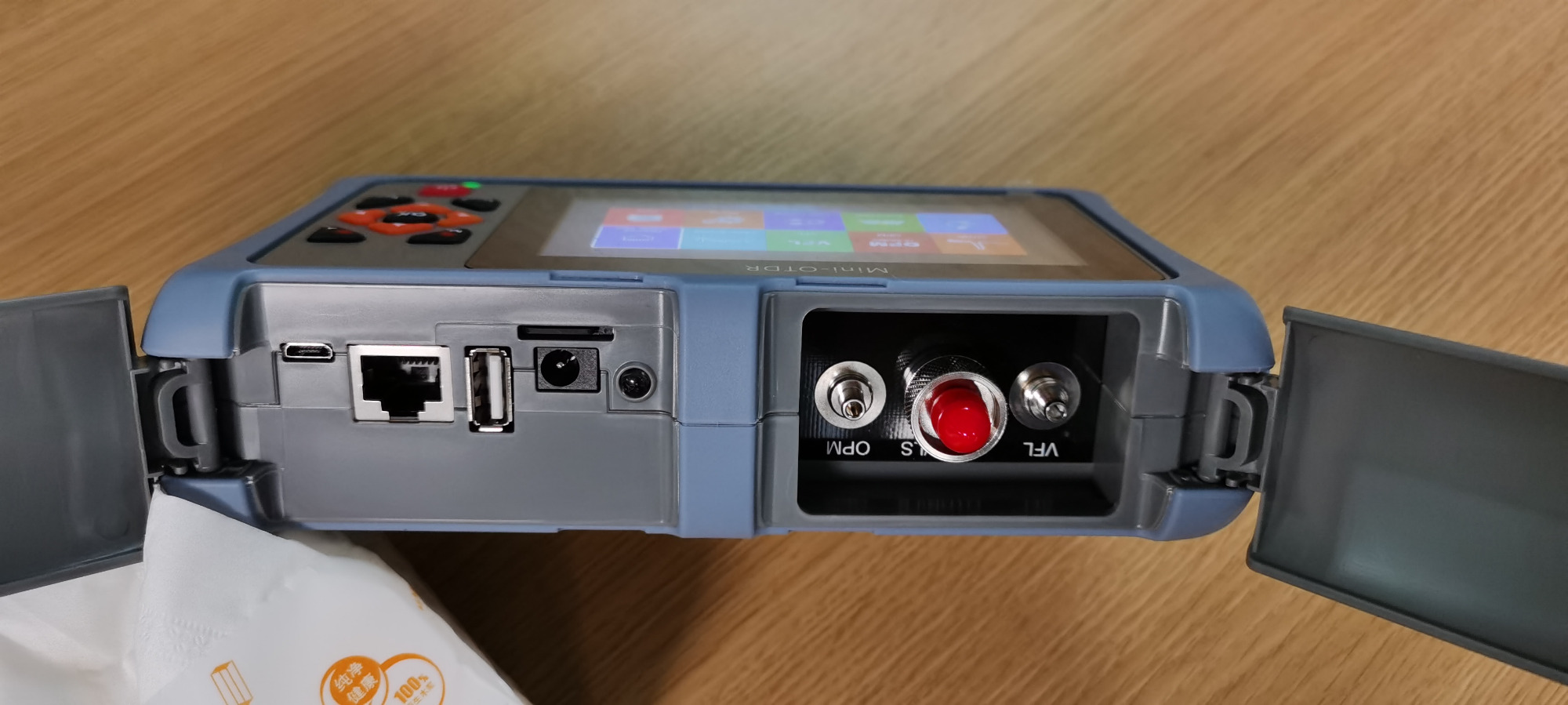

7. Sink type light port design, so that the instrument light port can get better protection.
8. Support pen-driver, SD card and Micro USB export data protection.
9. Any interface supports screen capture
Specifications:
|
Measuring range |
100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km |
|
Sampling resolution |
Min. 0.2m |
|
The sampling point |
64,000 points |
|
linearity |
≤0.05dB/dB |
|
Loss threshold |
0.01dB |
|
Loss resolution |
0.001dB |
|
Range resolution |
0.01m |
|
Range accuracy |
±(0.5m+Range×3×10-5+Sampling resolution) |
|
Memory |
>40000 |
|
VFL |
10mW, CW/2Hz |
|
Data interface |
2pcs USB (Type A×1, Micro usb×1), SD card |
|
Screen |
4.3-inch TFT-LCD (Standard distribution capacity touch screen) |
|
Battery |
3.7V/5200mAh |
|
temperature |
Working temperature: -10℃ ~ +55℃; |
|
humidity |
≤95%(No condensation) |
|
Size/Weight |
175x105x45mm/0.56kg(including battery) |
|
Attachment |
Power adapter, lithium battery, FC adaptor, USB cable, quick guide, portable package |
|
OPM |
Type A: -10dBm ~ -70dBm; Type B: +26dBm ~ -50dBm |
|
LS |
The output power: -5dBm, |
|

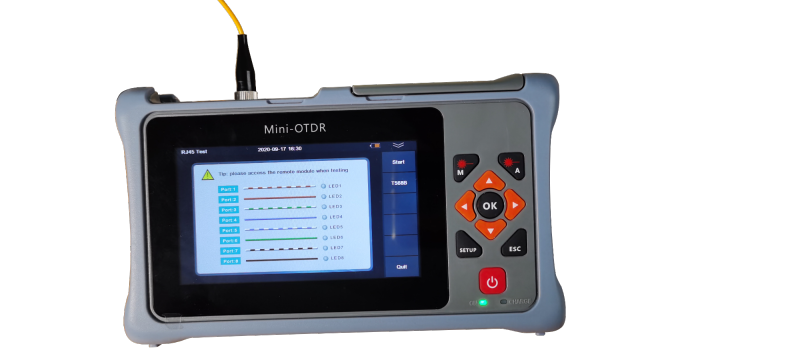

Network Cable test |
Support network wire sequence testing and wire alignment |
